Product Overview

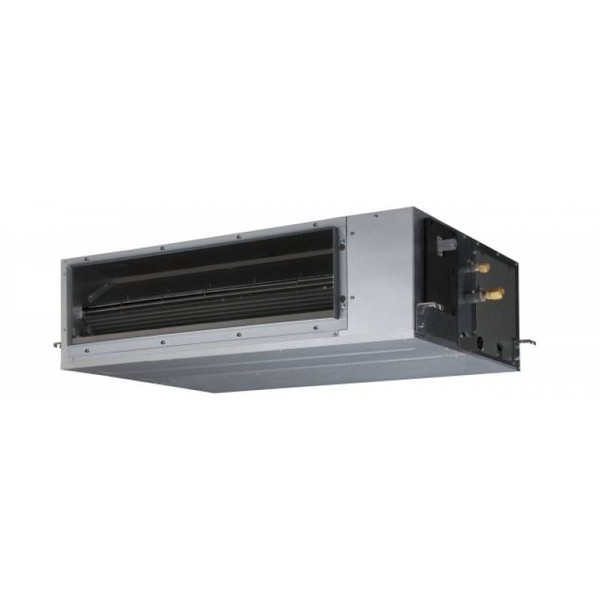

FUJITSU ARTG24LHTDP
7.1KW COOL / 8KW HEAT SLIMLINE DUCTED FAN COIL MODEL
7.1KW COOL / 8KW HEAT SLIMLINE DUCTED FAN COIL MODEL
- Model No. – Indoor
- ARTG24LHTDP
- Model No. – Outdoor
- AOTG24LBCA
- Reverse Cycle System
- Yes
- Capacity Class
- –
- Cooling Capacity (Watts)
- 7,100
- Cooling Capacity (BTU/h)
- 24,200
- Range (Watts)
- 2,900 – 8,000
- Range (BTU/h)
- 9,900 – 27,300
- Heating Capacity (Watts)
- 8,000
- Heating Capacity (BTU/h)
- 27,300
- Range (Watts)
- 2,200 – 9,100
- Range (BTU/h)
- 7,500 – 31,000
- Power Supply (Volts)
- 240
- Phase-Frequency (Ph – Hz)
- 50
- Power Supply Attachment
- Outdoor Unit
- Plug Size (If Applicable)
- Not Applicable
- Running Current, Cooling (Amps)
- 8.7
- Running Current, Range (Amps)
- 17 (Maximum)
- Input, Cooling (Watts)
- 2,080
- Input, Range (Watts)
- 4,060 (Maximum)
- Running Current, Heating (Amps)
- 9.2
- Running Current, Range (Amps)
- 18.5 (Maximum)
- Input, Heating (Watts)
- 2,190
- Input, Range (Watts)
- 4,400 (Maximum)
- Input (Watts)
- 2,190
- Moisture Removal (l/hr)
- 2.2
- E.E.R. – Cooling
- 3.41
- C.O.P. – Heating
- 3.65
- Star Rating – Cooling
- –
- Star Rating – Heating
- –
- Fan Speed
- 4
- Air Circulation, High (l/s)
- 378
- Compressor Type
- Twin Rotary x 1
- Dimensions – Inside Unit (HxWxD mm)
- 300 x 1000 x 700
- Weight – Inside Unit (kg)
- 36
- Dimensions – Outside Unit (HxWxD mm)
- 620 x 790 x 290
- Weight – Outside Unit (kg)
- 41
- I.U. Sound Pressure Level (dBA@1mtr)
- 36
- O.U. Sound Pressure Level (dBA@1mtr)
- 56
- O.U. Sound Power Level (dBA)
- 69
- Refrigerant Type
- R410A
- Connection Pipe Sizes, Gas (mm)
- 15.88
- Connection Pipe Sizes, Liquid (mm)
- 6.35
- Pre Charged Length (Metre)
- 15
- Minimum Pipe Length (Metre)
- 5
- Maximum Pipe Length (Metre)
- 30
- Maximum Pipe Height (Metre)
- 20
- Pipe Connection Methods
- Flared
- Outdoor operating Temp, Cooling Degrees C
- -10 to 46
- Outdoor operating Temp, Heating Degrees C
- -15 to 24
